Robot dedicated servo system SN series servo
Robot dedicated servo system SN series servo

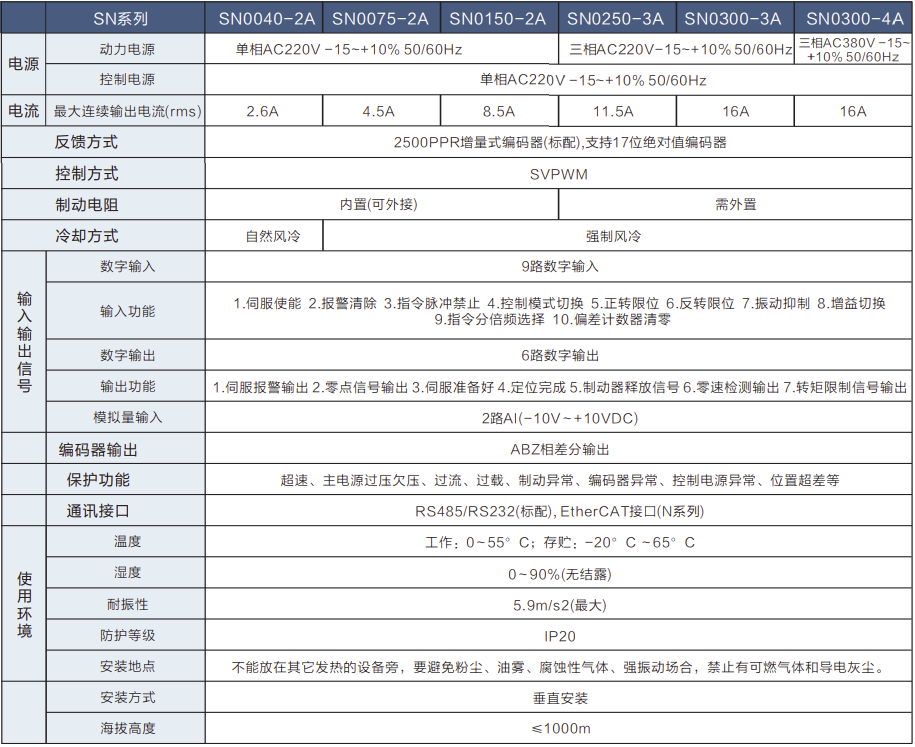

The SN series servo is a new generation servo system developed by Shanlong Intelligent Control with 10 years of servo research and development experience. The SN series products are stable and reliable, with high integration, compact structure, and powerful functions. SN Series Servo System Only For Robot Specification Parameters Product Features N...
Name：
Corporate name：
Phone：
E-mail：
Consultation content：
  • Description
  • Features
  • Parameter
  • Application field

The SN series servo is a new generation servo system developed by Shanlong Intelligent Control with 10 years of servo research and development experience. The SN series products are stable and reliable, with high integration, compact structure, and powerful functions. SN Series Servo System Only For Robot Specification Parameters Product Features N series is divided into two sub series: pulse type and bus type pulse type: pulse control, suitable for high-precision motion control occasions such as machine tools and robots. Bus type: EtherCAT bus control, EtherCAT bus communication speed can reach 100Mbps, communication efficiency is high, and speed is fast. Suitable for multi axis, high-precision motion control applications.

High speed response: Adopting unique algorithms and control circuits, the calculation speed is improved, and the maximum speed loop response frequency can reach 1.6KHZ;

Accurate positioning: supports both 2500PPR Tamagawa incremental encoder and 17 bit Tamagawa absolute encoder;

Vibration suppression: Equipped with an automatic resonance suppression notch filter to meet the parameter requirements of different loads or operating states, it can shorten positioning time and reduce vibration;

Two degree of freedom control method: Compared to traditional PID control, it can better balance the optimal tuning of tracking performance and disturbance resistance performance; Balancing low-frequency vibration free and high-speed high-precision machining control;

Support advanced functions such as electronic cam, full closed-loop control, and gantry synchronization.


机器人专用伺服系统SN系列伺服

Suitable for high-precision motion control applications such as machine tools and robots.
