Special spindle servo driver for embroidery machines
Special spindle servo driver for embroidery machines
With the continuous development and changes of the embroidery machine industry, as well as the continuous technological accumulation of Shanlong Electric Control in servo drives, SL SDE2 series servo drives have been launched on the basis of the original SI. SDE/SLSDF series. The power range covers 400W, 750W, 1.0KW, 1.5KW. 2KW 3KW 3.5KW. 4KW, meet...
Name：
Corporate name：
Phone：
E-mail：
Consultation content：
  • Description
  • Features
  • Parameter
  • Application field

With the continuous development and changes of the embroidery machine industry, as well as the continuous technological accumulation of Shanlong Electric Control in servo drives, SL SDE2 series servo drives have been launched on the basis of the original SI. SDE/SLSDF series. The power range covers 400W, 750W, 1.0KW, 1.5KW. 2KW 3KW 3.5KW. 4KW, meeting the application of various embroidery machines in the market. The driver supports unidirectional 220VAC and three-phase four wire 380VAC power inputs, maximizing compatibility with specific user power supplies. The SLSDE2 series servo driver further improves the performance of the Shanlong servo in following response, smooth operation, and other aspects, making the dynamic response of the embroidery machine more timely and precise at designated stops.

According to industry standards and the characteristics of the embroidery machine usage environment, a wide voltage design is adopted. The E2 series server driver supports single-phase AC220V earth 15% 50/60Hz or three-phase four wire AC380V earth 15% 50/60Hz power input;

Super universal, can be connected to any embroidery machine system on the market, directly replacing its servo driver, and does not require replacing the servo motor; Perfect self-protection function, with abnormal protection functions such as overspeed, undervoltage, overvoltage, overcurrent, overload, overheating, etc; 300% overload capacity, strong load carrying capacity;

Control positioning accuracy+0.1%, stable running speed, fast and accurate parking;

The comprehensive monitoring function can closely monitor the operating speed, current position, command pulse accumulation, position deviation, motor torque, motor current, linear speed, absolute rotor position, command pulse frequency, operating status, input and output terminal signals, etc., facilitating the rapid detection and timely handling of abnormalities.

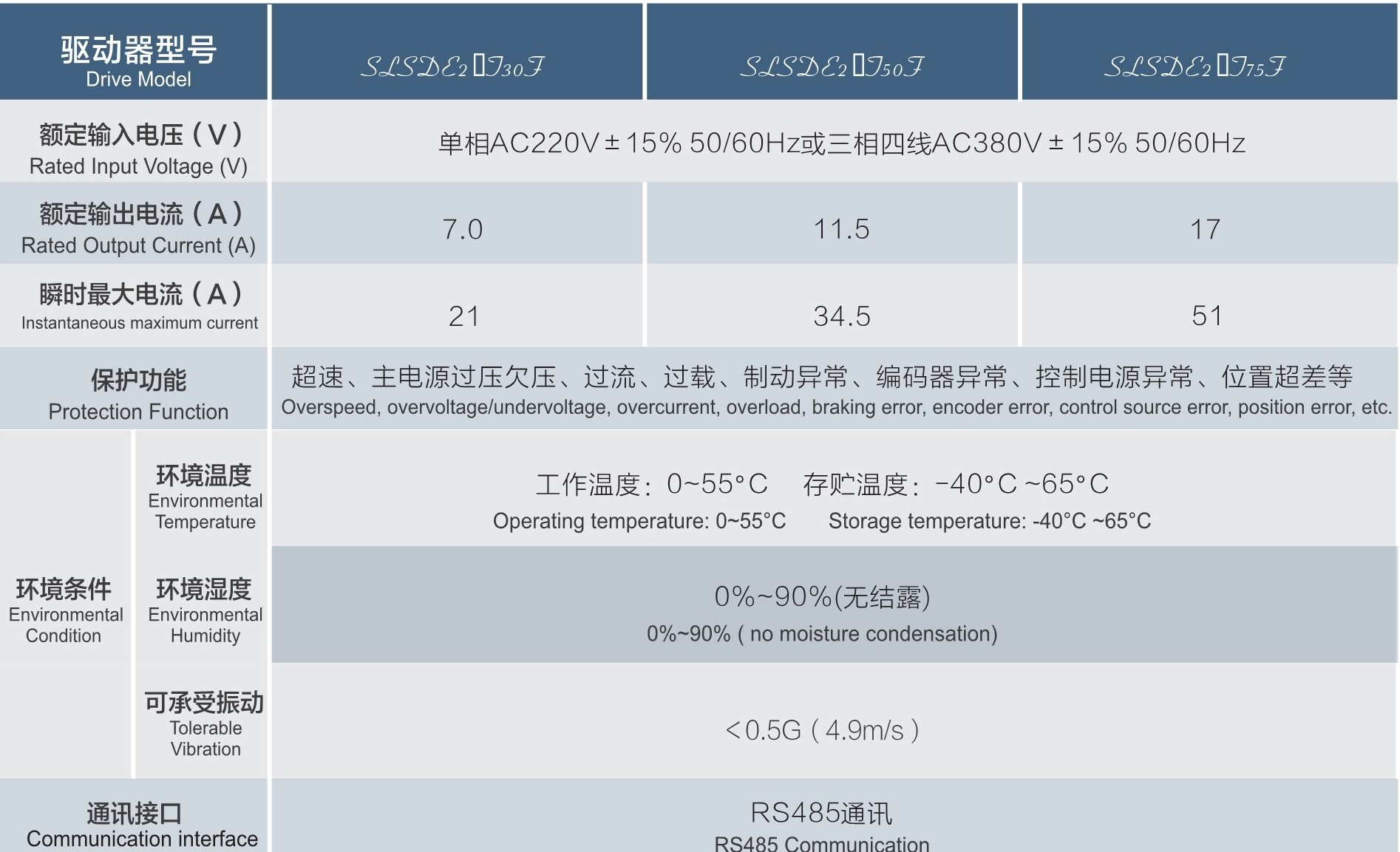

刺绣机专用主轴伺服驱动器

High control accuracy and fast dynamic response make the movement of the embroidery frame softer and more precise, effectively reducing the rate of embroidery thread breakage, while reducing mechanical wear and extending use

Equipped with communication function, it can switch gain in real-time according to different needle lengths, improving the quality of embroidery products; The driver parameters can be modified through the operation head, making debugging convenient;

Perfect self-protection function, with protection functions such as undervoltage, overcurrent, overload, abnormal braking, encoder abnormality, abnormal control power supply, and position deviation, closely monitoring the operation of the machine, facilitating the rapid detection and timely handling of abnormal situations.
