SLECS-E98
SLECS-E98
The SLECS E98 computerized embroidery machine control system is the latest open high-end computerized embroidery machine control system launched by Shanlong. The system adopts high-definition display and touch operation box, providing users with a more convenient interactive experience; The system adopts an open design and supports high-end brand s...
Name：
Corporate name：
Phone：
E-mail：
Consultation content：
  • Description
  • Features

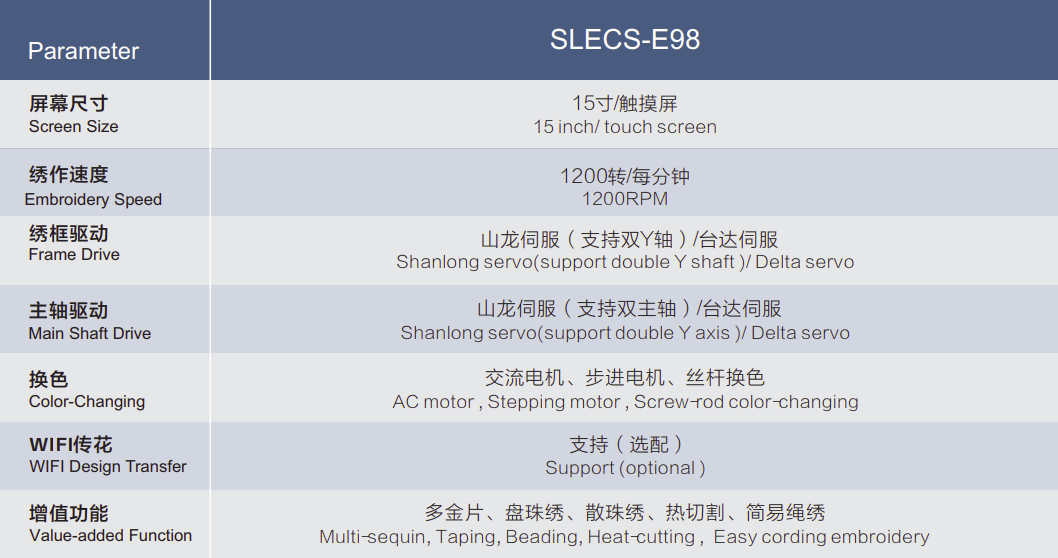

  • Parameter
  • Application field

The SLECS E98 computerized embroidery machine control system is the latest open high-end computerized embroidery machine control system launched by Shanlong. The system adopts high-definition display and touch operation box, providing users with a more convenient interactive experience; The system adopts an open design and supports high-end brand servo drivers, leveraging the respective advantages of Shanlong and brand servo to provide customers with more choice space; Supports dual spindle and dual Y-axis for ultra multi head machines; Newly upgraded peripheral control board with high reliability and easy installation and maintenance; The embroidery frame servo drive has RS485 communication function, which can modify the drive gain in real-time, making the movement of the frame softer and the embroidery more precise; Fully support value-added functions such as multi gold sheet, loose bead embroidery, simple rope embroidery, and hot cutting;.

15 inch full touch operation interface, good human-computer interaction experience;

The system is compatible with high-end brand servo drives, meeting the needs of users for high-quality embroidery, and the embroidery products are comparable to imported machines;

To meet the increasing number of machine heads, Shanlong has introduced dual axis synchronous control, which achieves precise synchronization of dual axis positions by adjusting position deviation in real-time;

Shanlong innovatively introduces the WIFI flower transmission function, which facilitates workshop pattern management and effectively prevents belt leakage;

The system supports multi task real-time operation, and embroidery can be performed while editing patterns, modifying parameters, and other operations to improve work efficiency;

Intelligent disconnection inspection machine head board has convenient wiring and low fault rate, supports stepper motor locking, independent wire hooking, and supports machine head combination embroidery function;

Support value-added functions such as multi gold sheet, disc bead embroidery, loose bead embroidery, hot cutting, and simple rope embroidery, bringing more added value to your machine.


SLECS-E98

embroidery machine
