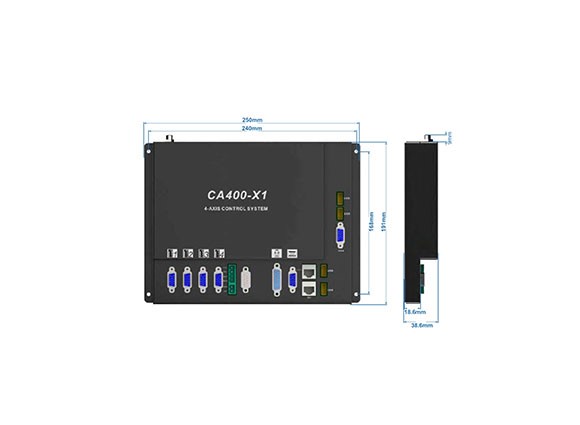

CA400-X1 Four Axis Motion Controller Panel Furniture Control System
CA400-X1 Four Axis Motion Controller Panel Furniture Control System
CA400 is a four axis four linkage controller that does not require a computer host and can operate independently. We have standard servo wiring ports and reserve multiple reserved IO ports to meet customer expansion needs. Adopting the optimal path processing results in higher processing efficiency. CA400, true four axis linkage, truly achieving no...
Name：
Corporate name：
Phone：
E-mail：
Consultation content：
  • Description
  • Features
  • Parameter
  • Application field

CA400 is a four axis four linkage controller that does not require a computer host and can operate independently. We have standard servo wiring ports and reserve multiple reserved IO ports to meet customer expansion needs. Adopting the optimal path processing results in higher processing efficiency. CA400, true four axis linkage, truly achieving no dead corner machining.

◆ Servo standard wiring

Equipped with standard servo wiring ports, specific encoder zero feedback signals, servo alarms, and other interfaces.

◆ Optimal path calculation

Perform optimal path processing in the rotation axis path to ensure maximum machining efficiency.

◆ Holding brake function

Equipped with the functions of holding brake input and holding brake output, the servo communicates with the system to ensure the synergistic time of the motor holding brake, so that there will be no knife stabbing phenomenon at the moment of startup and shutdown.

◆ Three axis and four axis universal

Supports switching between three axis circular carving, three axis flat carving, and four axis circular carving, with only parameter configuration and no need to adjust wiring to use.

◆ Support handwheel processing

In handwheel mode, the machine tool can be moved in a strict pulse counting state for reverse processing.

◆ Bias function

Equipped with automatic centering of the workpiece origin and manual adjustment of the workpiece origin coordinates, it greatly facilitates customer setting of the workpiece origin.

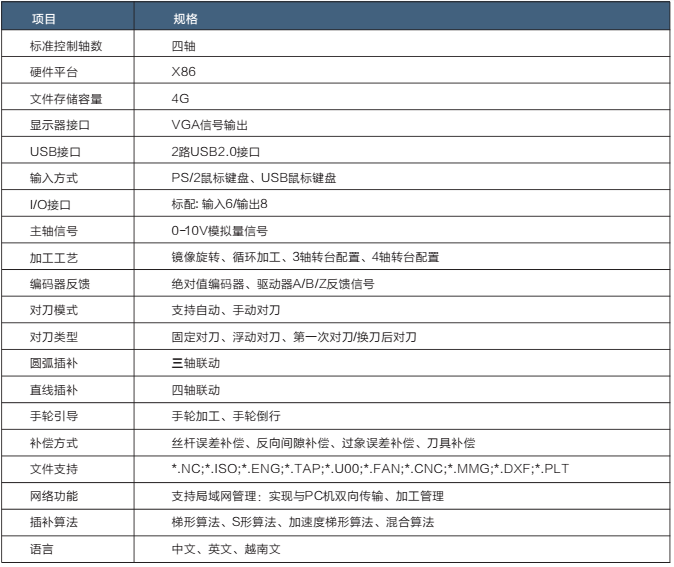

CA400-X1四轴运动控制器 板式家具控制系统

Three dimensional round carving, stone carving, jade carving, panel furniture control system, cutting machine control system

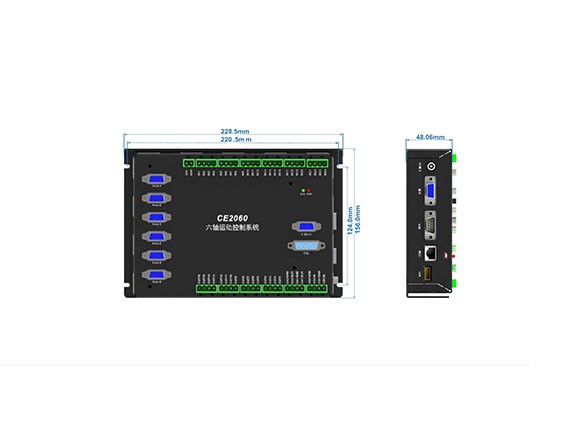

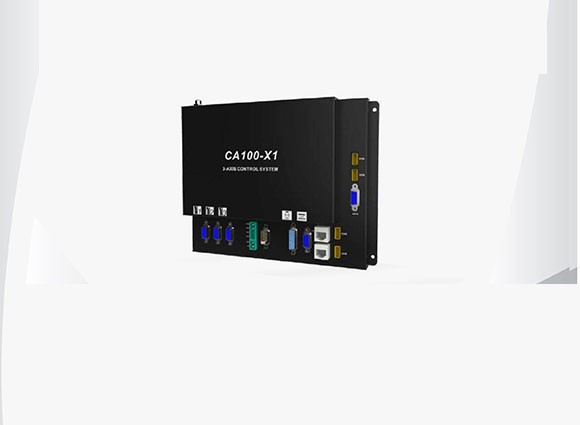

Previous:CE2060 Six Axis Motion Controller Universal ControllerNext:CA100-X1 three-axis motion controller panel furniture system on
